Unlocking Block Pin Set for FN 509 & FNS-C Pistols
Replacement Unlocking Block Pins for the FN 509 and FNS-C
Details
This pin replaces the factory Solid Front Unlocking Block Pin with a Coil Pin that’s easier to install and remove as needed. These pins have been test-fired to withstand thousands of rounds of live ammunition without bending or walking out.
Recommended Use:
We recommend each pin be used 1 time and be replaced the next time it’s removed. (That’s why there are 3 in the package). These pins should be removed and installed in the same direction as the factory Unlocking Block Pin - removed right to left and installed left to right.
Expected Results:
Direct replacement for the factory Front Locking Block Pin.
Easy to install and remove for cleaning and inspection.
100% made in the USA with the highest quality materials.
For Use In These Guns
For use in all current FN 509, and FNS Compact (FNS-C) model pistols, including (but not limited to) the Tactical, Midsize, Compact, and Edge models.
Does Not Fit These Guns
Not tested for use in the FN 502, FN 503, FN545, FN510 and FNS (Non-Compact Models).
Not tested to work in any model pistols not listed in the “For Use In” Section.
What's Included

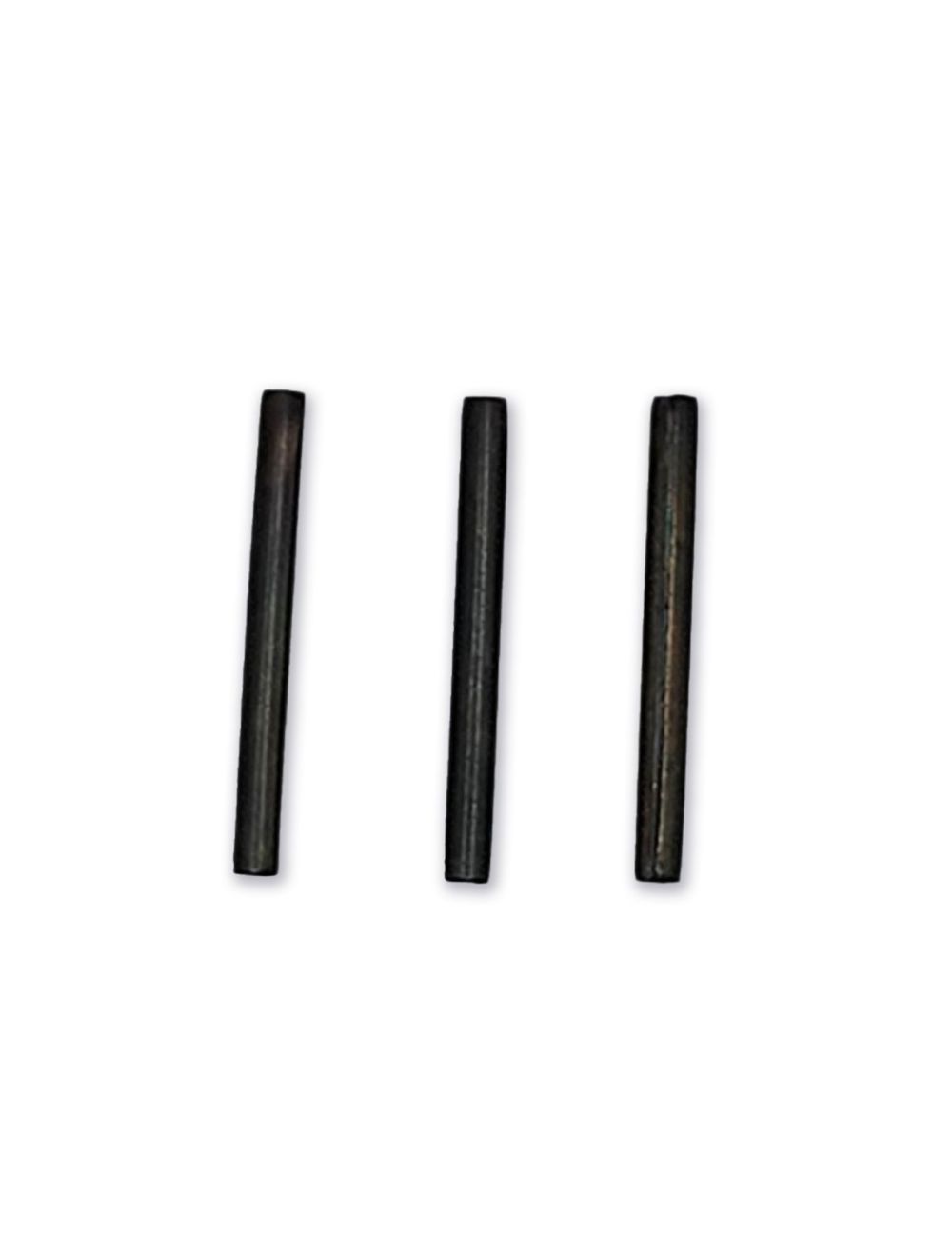

This kit includes one set of 3 Replacement Unlocking Block Pins for the FN 509 and FNS Compact Series pistols.
Direct replacement for FN Part number: 66-100219
Installation Resources
Recommended Tools:
Starting the Pin - Roll Pin Starter Punch (Hollow End). 1/8 or 3mm work best.
Finish Install and Removal - 2mm Roll Pin Punch with at least 25mm (1”) length.
These pins should be removed and installed in the same direction as the factory Unlocking Block Pin:
Removed: Right to Left
Installed: Left to Right
