Apex Optic Mount for ACRO/MPS* - Sig P320 RX and RX Pro

Apex Optic Mount for ACRO/MPS* - Sig P320 RX and RX Pro

Super Clamp for Steiner MPS Optic

Super Clamp for Steiner MPS Optic

Apex Optic Mount for ACRO/MPS* - Sig P320 Sig-LOC Slide Cut including M17 / M18 Models

*We highly recommend using the Apex Super Clamp to expand the clamping range of your MPS optic

As low as $65.00
Availability: In stock
Only %1 left
SKU
112-009-C
Add to Wish List

Details

The Apex Optic Mount is designed to securely mount the below listed optics to the slide of the Sig Sauer P320 Legion, P320 M17/M18, and other models featuring the -R2 slide cut. The Apex Optic Mount comes either with or without an integrated rear sight. The integrated rear sight in front of the optic also acts as a gas shield to keep class cleaner longer.



Optics compatible with this mount:

  • Aimpoint® Acro™ P-1 & P-2
  • Steiner MPS
  • Lead & Steel Pandora PB-3



The Apex Optic Mount with integrated rear sight for the R2 slide cut is set up to co-witness in the bottom 25% of the optic window. Requires a tall front sight for co-witness. Two different sight height packages are available. Select option based on barrel length.



- Designed to fit the slide of the Sig Sauer P320 with an R2 slide cut

- Works with models equipped with the factory Loaded Chamber Indicator

- Sights regulated for POA=POI at 15 yds with 124 gr. NATO ammunition (applies to optic mounts with integrated rear sight only)


For Use In These Guns

Works on the Sig Sauer pistols with a Sig-Loc slide cut, including the P320 XFIVE Legion, P320-M17, P320-M18, P320 XFULL, P320 XCARRY, P320 XCOMPACT, and P320 XVTAC

- Any Sig P320 pistol with the Sig-LOC optic cut, see the chart for slide identification in the product images.

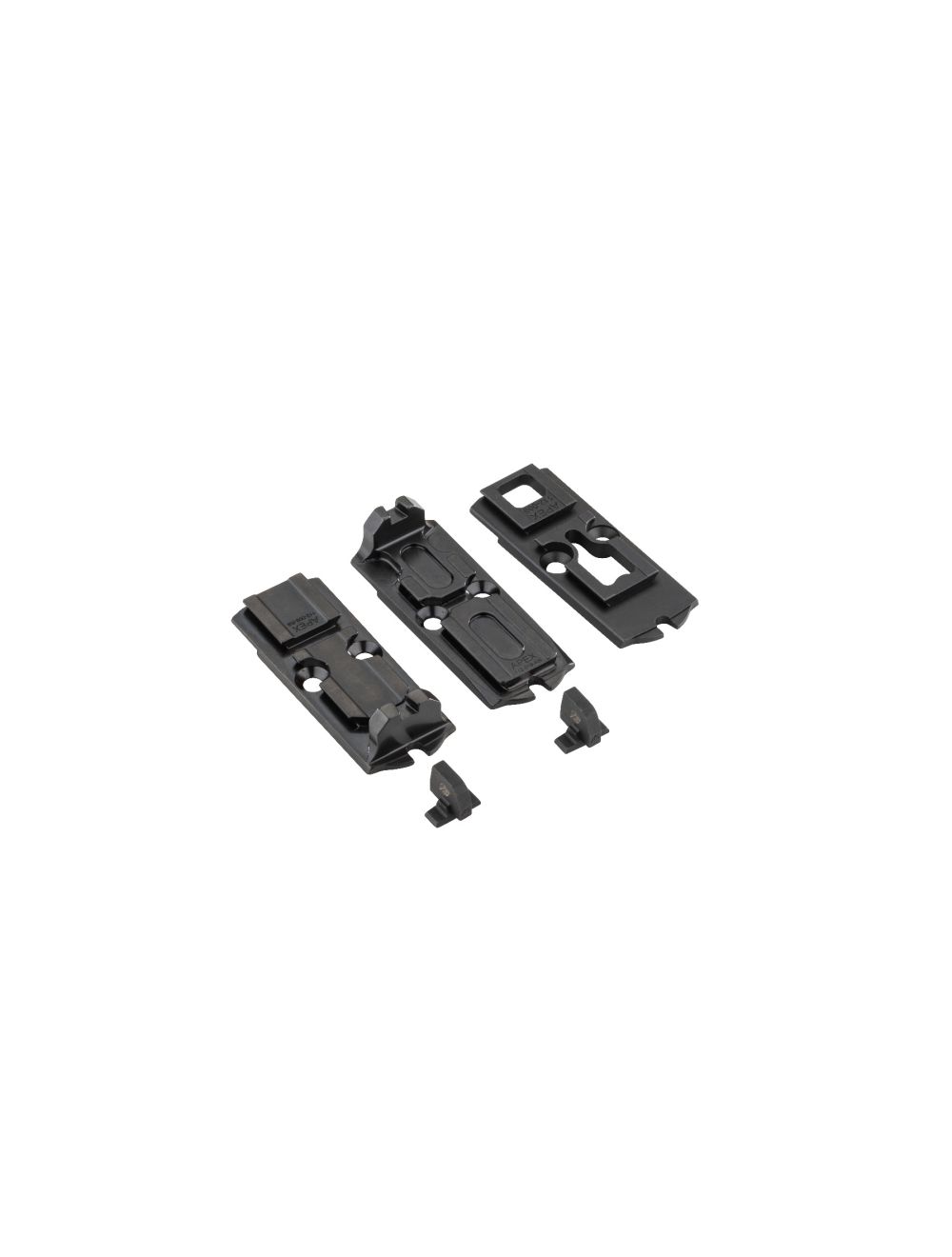

Part# 112-009: Does not include integrated rear sight and will fit any P320 pistol with R2 slide cut

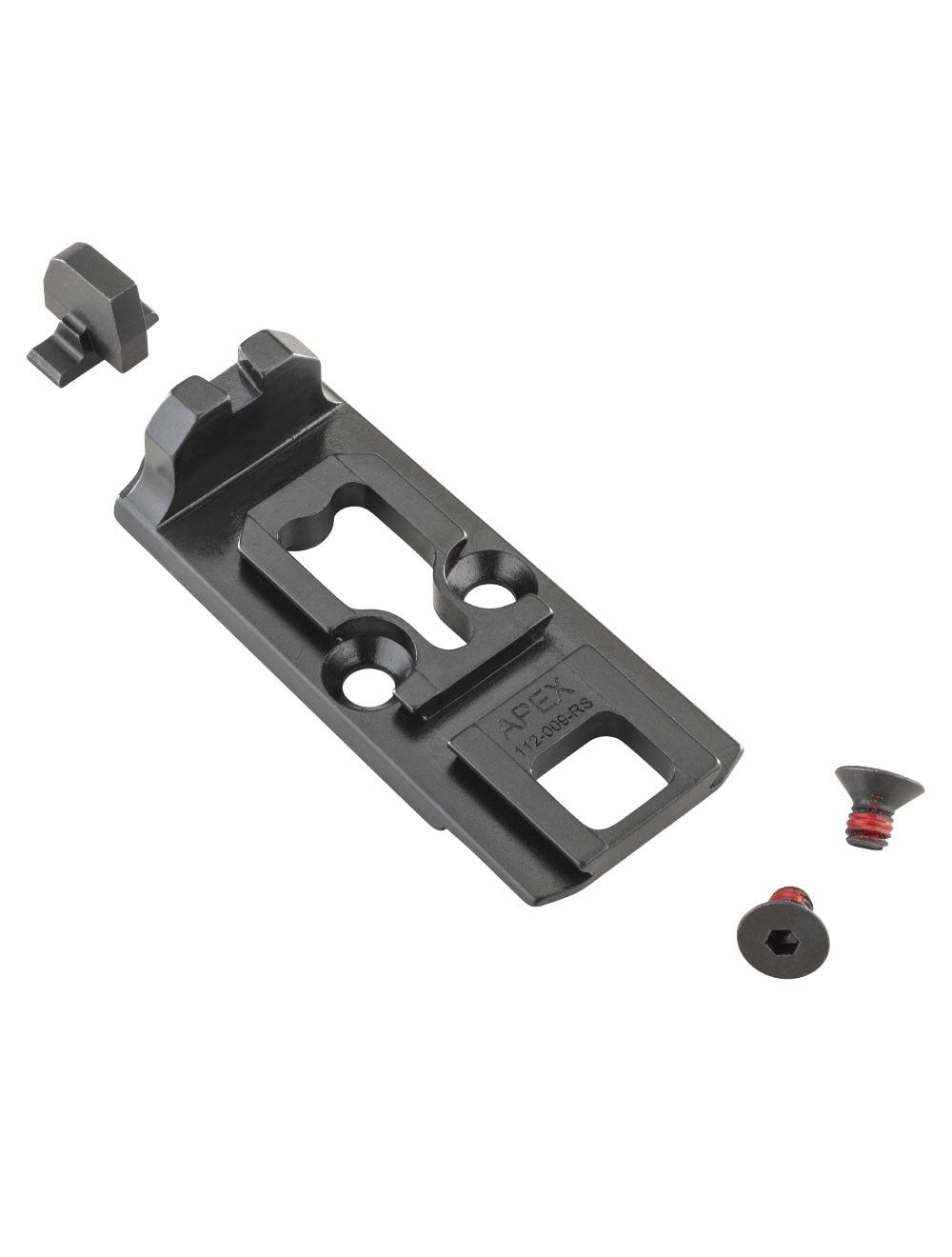

Part# 112-009-RS-357: Includes integrated rear sight in front of the optic and accompanying front sight(.357" blade height). Select this option for P320 models with a 5.0” barrel (i.e. Legion).

Part# 112-009-RS-373: Includes integrated rear sight in front of the optic and accompanying front sight(.373" blade height). Select this option for P320 models with a 4.7” or shorter barrel (i.e. M17 or M18).

Part# 112-019-RS-357: Includes integrated rear sight behind the optic and accompanying front sight(.357" blade height). Select this option for P320 models with a 5.0” barrel (i.e. Legion).

Part# 112-019-RS-373: Includes integrated rear sight behind the optic and accompanying front sight(.373" blade height). Select this option for P320 models with a 4.7” or shorter barrel (i.e. M17 or M18).

Does Not Fit These Guns

Not for use on the Sig Sauer P320 models with RX or RX Pro (RXP) slide cuts.

Not for use on the Sig Sauer P320 AGX models (uses RX Pro cut).

Not for use on the Sig P320Max (This slide has an entirely different optic cut we do not currently support)

See parts 112-011 and 112-012 for models with RX or RX pro slide cuts.

Older X-5 Slides - These slides have a cut that looks similar to the Sig-Loc cut, but with 2 distinct differences:

- The O.G. slide cut at the front of the mounting geometry in the slide is narrower than those on modern Sig-Loc cut slides

- Mounting Screw Holes are a different thread pitch than most other Sig Slides and we do not have screws to match them

What's Included

1 ea. Apex Optic Mount for the ACRO, MPS*, or PB-3 Optics

2 ea. Mounting Screws - Thread Locking Patch pre-applied (torque to 20 in-lb only)

1 ea. Tall Front Sight (applies to options with integrated rear sight only)
