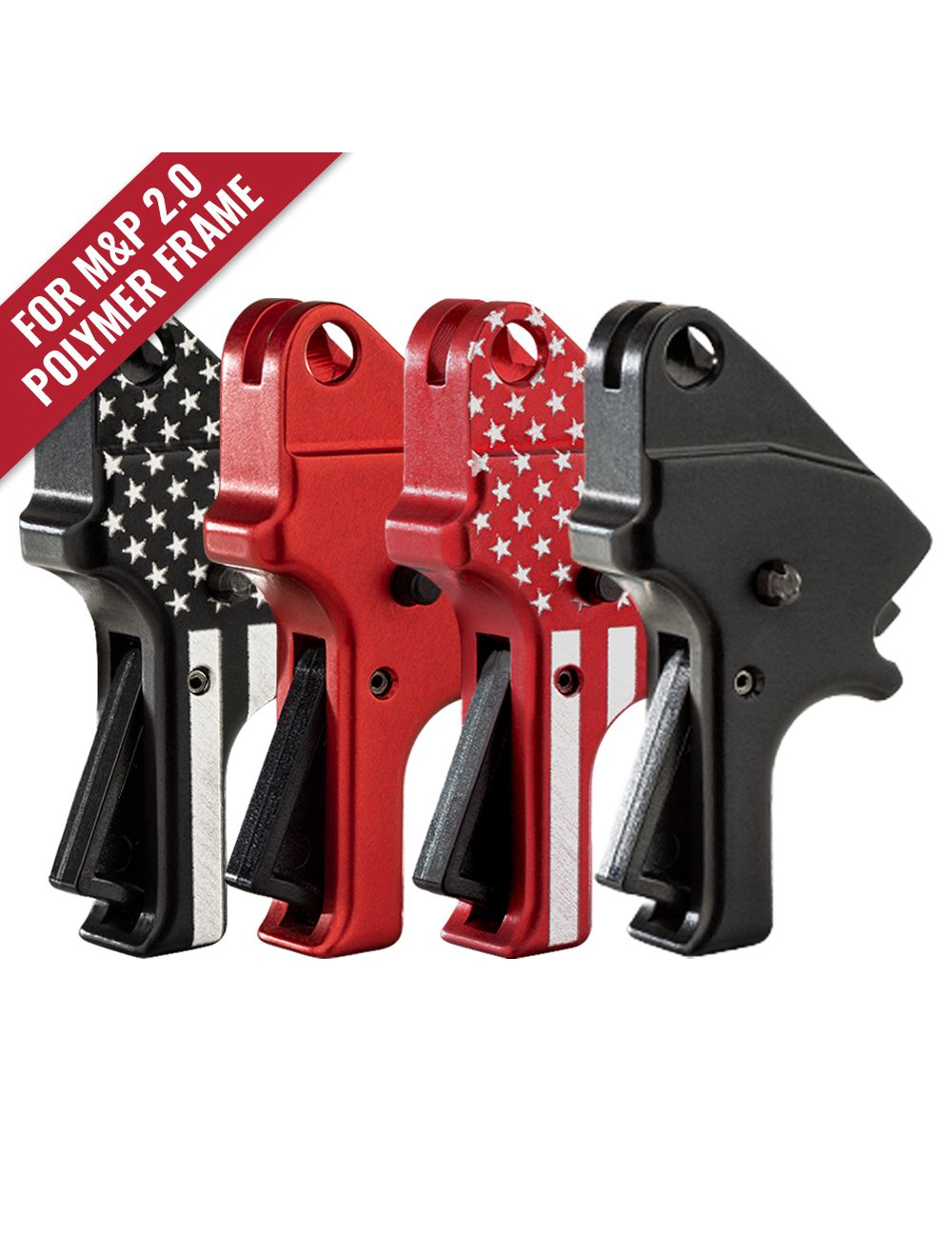

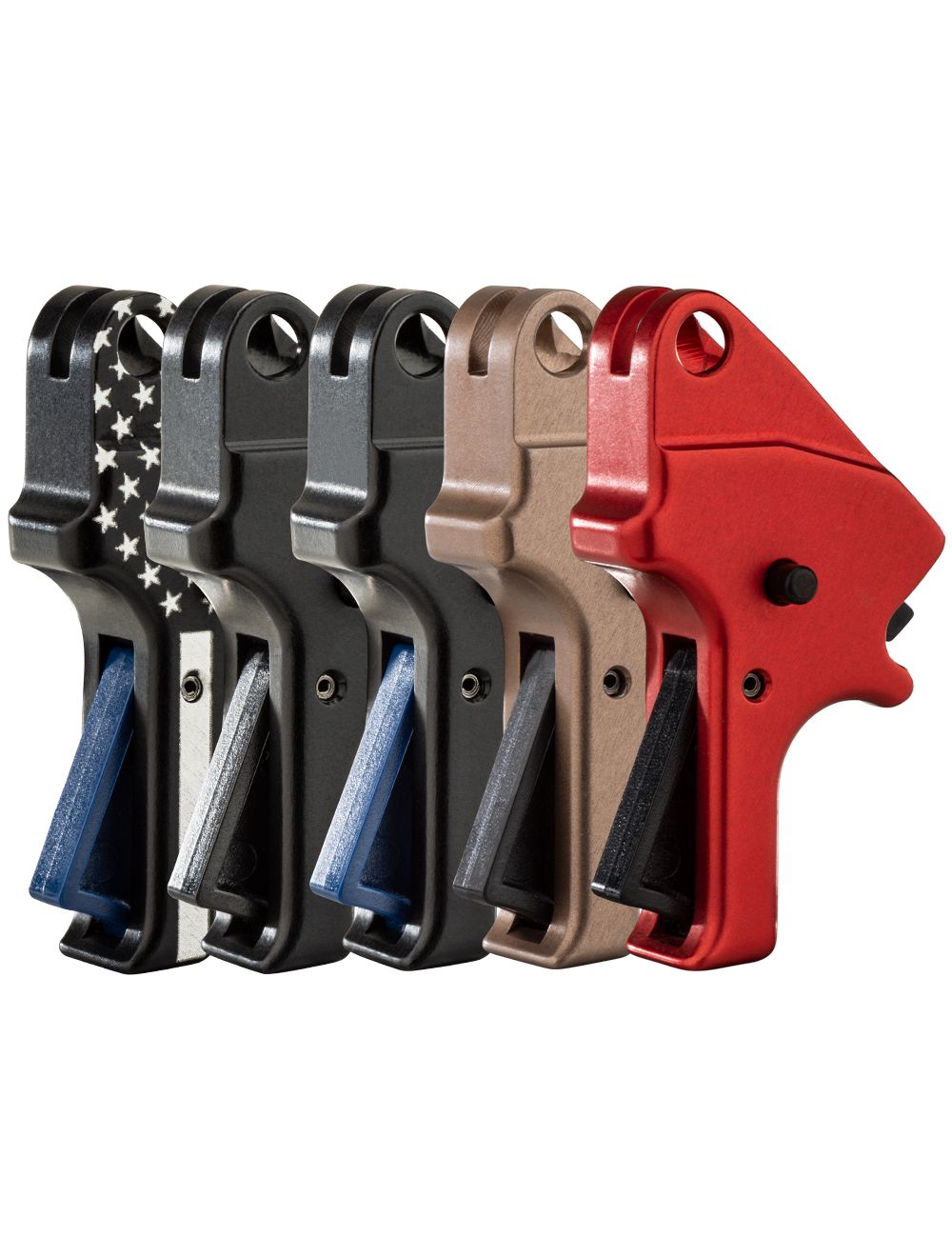

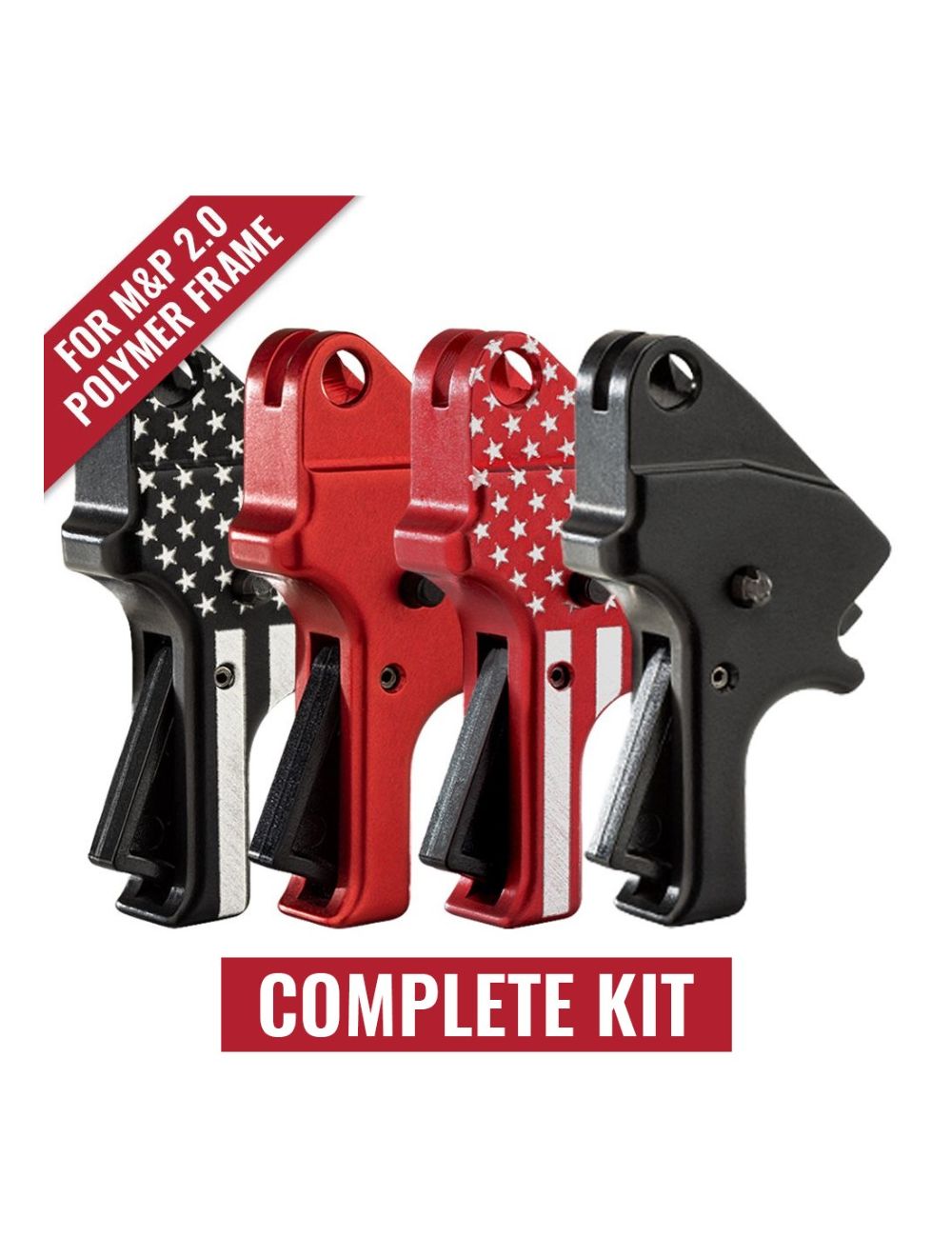

Flat-Faced Forward Set Trigger Kit for Polymer Frame M&P M2.0
- Chamfers at the front corners (classic trigger has a radius on the front corners)
- This provides for a narrower trigger feel without mechanically changing the functional surfaces
- Additional decorative face cuts on the visible sides of the trigger
- Same performance as the classic line, just a different look
Details
Nothing compares to the performance that comes from the patented Apex Forward Set Trigger Kit. This kit is engineered to provide the M&P M2.0 pistol owner with a smooth, consistent trigger pull with the advantages of shorter over-travel and shortened trigger reset. Using a combination of the Apex springs and factory sear and trigger return springs allows the user to set the trigger pull weight within a range suitable for duty/carry down to a weight desired for competition. Together, this drop-in trigger kit will:
-Reduce trigger pull weight by approximately 2 lbs.
-Reduce overall trigger travel by approximately 40%
-Reduce trigger pre-travel, over-travel and reset distance
-Smooth uptake and reset
-Crisp trigger break
-Center mounted pivoting safety maintains factory safety values
-Direct drop-in replacement parts, no fitting required
Type 3 Trigger Differences
The Type 3 Trigger for the M&P M2.0 features a visually distinct design that sets it apart while maintaining the same excellent performance as our classic trigger. Features of the Type 3 triggers include:
Drop Testing
These kits have been tested “Drop Safe” according to Apex’s Drop Test Protocol in each, size and configuration of the M&P M2.0 this kit is spceified to fit into.
NOTE: Due to the nature of the anodize process, there may be a variation in the color of the trigger.
For Use In These Guns
For use in all M&P M2.0 polymer frame pistols in 9mm, .40S&W, 10mm, and .45ACP, including the Full Size, Standard, Compact, and Subcompact.
EXCEPT for the Shield and Shield M2.0.
Does Not Fit These Guns
Not certified for use in the M2.0 Metal Series models.
Not for use in the original M&P models or in any M&P Shield models.
What's Included
1 ea. Aluminum Flat-Faced Forward Set Trigger
1 ea. Forward Set Sear Actuator
1 ea. 2-Dot Fully Machined Sear
1 ea. Heavy Duty Sear Spring (Purple)
1 ea. Duty/Carry Sear Spring (Silver)
1 ea. Light Sear Spring (Orange)
1 ea. Apex Sear plunger
1 ea. Heavy Duty Trigger Return Spring (Green)
1 ea. Duty/Carry Trigger Return Spring (Silver)
1 ea. Ultimate Striker Block
1 ea. Striker Block Spring
1 ea. Apex Sight Tool
1 ea. Slave Pin
Installation Resources
Videos
How to Disassemble the M&P M2.0 Slide
How to Disassemble the M&P M2.0 Frame
How to Reassemble the M&P M2.0 Frame
