Disassembly Fixture for FN 509/FNS-C
FREE FEDEX SHIPPING
60 DAY -> Limited lifetime warranty
CUSTOMER SERVICE
- Disassembly Fixture Base – Qty 1 (3D Poly version has a ¼-20 Hex Nut pressed in)
- Disassembly Fixture Cap – Qty 1
- 2” Alignment Screw – Qty 1
- Polymer Spacer – Qty 1 1/8” Fixture Pin – Qty 3
- Common Screwdriver (Flat Head)
- Small Hammer (Between 4-8 oz is best)
- 3/32” Pin Punch – Recommend no longer than 1” of 3/32” to prevent deflection
Details
Working on an FN 509? Then this is likely the most valuable tool you could add to your workbench. The Apex FN Disassembly Fixture is designed to properly hold the FN 509, or FNS Compact, pistol frame to locate a pin punch for removal of the unlocking block pin, which is the most difficult part of the disassembly process.
CAUTIONS:
– Must be used on a solid surface (i.e. vise anvil, concrete floor or extremely solid work bench over a table leg)
– DO NOT USE ON YOUR KITCHEN TABLE OR COUNTERTOP. THESE SURFACES ARE NOT STABLE ENOUGH
– If your Front Unlocking Block Pin is damaged (Face not flat) by prior attempts to remove it, these fixtures ARE NOT likely to correct the problem. You may need to find a way to dress the end of the pin flat before you attempt to drive it out
WE DO NOT GUARANTEE THAT THIS FIXTURE WILL PREVENT YOU FROM DAMAGING YOUR FRAME.
100% Made in the USA, right here in Phoenix, AZ.
For Use In These Guns
Designed to work for the following pistols:
• For use with all current FN 509 and FNS Compact models.
• In other words, if your slide says FN 509 or FNS-C, this will work for your frame
Does Not Fit These Guns
Not for use with the FNS or FNS Longslide models.
Not intended for use on the FN X-Series pistols.
What's Included

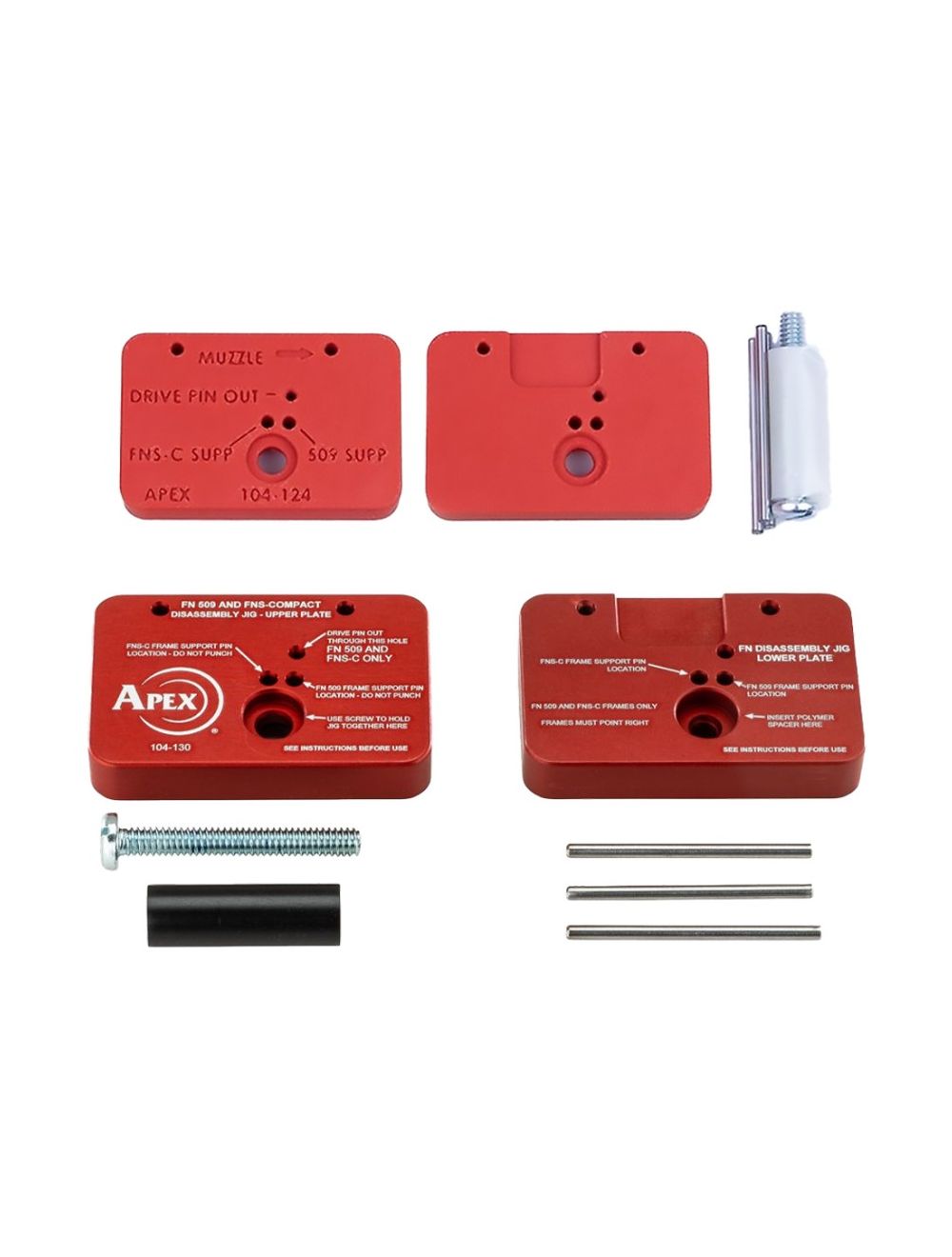

7 total pieces in the package:
